TLanal, TolAnal

TLanal : TL Glow Curve Deconvolution Program

TolAnal : TL/OSL Glow Curve Deconvolution Program (2009/07/07)

beta TolAnal : TL/OSL Glow Curve Deconvolution Program - Including Interaction Model (2011/06/30)

　

TLanal

~~download TLanal program [ver 1.0.0] (2004/05/31)~~

Operation System : Windows 2000 or Windows XP with Microsoft .net framwork 1.0

~~download TLanal program [ver 1.0.2] (2008/04/20)~~

Operation System : Windows 2000, Windows XP or Windows Vista with Microsoft .net framwork 2.0

download TLanal program [ver 1.0.3] (2008/09/17)
Include MOK(mixed order kinetics) and GA+(general approximation plus)

Operation System : Windows 2000, Windows XP or Windows Vista with Microsoft .net framwork 3.5

Install Procedure

1 Extract

~~([ver 1.0.0] files contained : SetUp.Exe, SetUp.Ini, TLAnal Installer.msi, InstMsiA.Exe, InstMsiW.Exe)~~

~~([ver 1.0.2] files contained : SetUp.Exe, TLAnal Installer.msi)~~

([ver 1.0.3] files contained : SetUp.Exe, TLAnal Installer.msi)

2 Run SetUp.Exe
　

Sample Data (TLD-100, 100mGy)

(press right button of mouse on 'download' and save)

1. TL glow data (text format) : download

2. TL glow data (tld format) : download

3. TL material data (tlm format) : download

4. TL project data1 (tlp format) : download -- deconvoluted by General Approximation with 5 peak

5. TL project data2 (tlp format) : download -- deconvoluted by First Order Kinetics with 6 peak

Tiny Manual

This program can be used for one kind of TL material, for one kind of TL reader, for various exposure by radiation, and for various heating profile.

step 1 Introducing Glow Data

Text File Format (*.txt or *.dat)

type 1 (heating ratio will be asked with dialog)

temperature(in Kelvin) intensity

300.0 0.0
302.0 5.7
304.2 8.6
306.2 10,3
...

type 2

heating ratio
temperature(in Kelvin) intensity

10.0
300.0 0.0
302.0 5.7
304.2 8.6
306.2 10,3
...

type 3 (can be used in arbitrary temperature profile)

time(in sec) temperature(in Kelvin) intensity

0.0     300.0      0.0
0.2     302.0      5.7
0.4     304.2      8.6
0.6     306.2      10,3
...

step 1-1 Add Glow Data

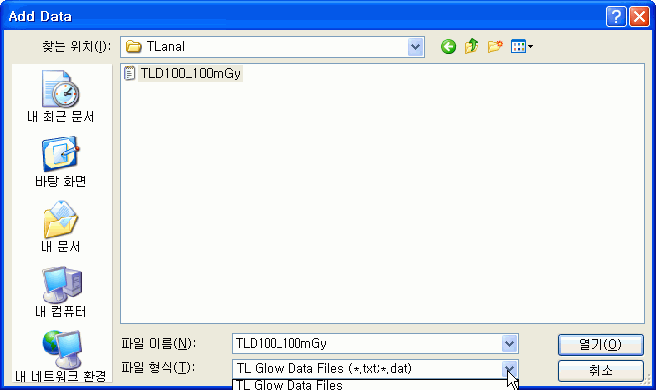

File menu - Add Glow Data... - choose TL Glow Data Files (*.txt; *.dat) - Select data file introducing.

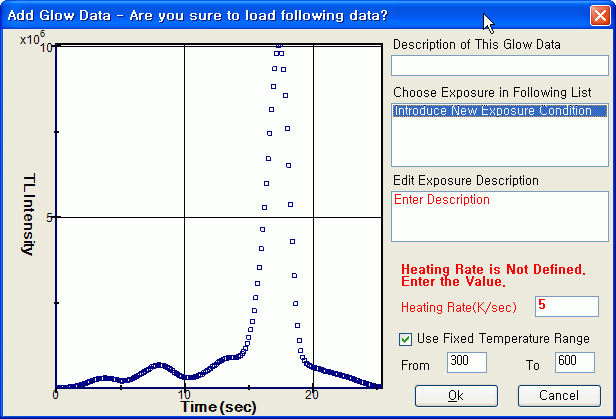

When data is linear heating profile and do not containe heating ratio at first line, dialog will appear as follows.
(You shoud respond the edit box appeared as red.)

In above dialog, if "Use Fixed Temperature Range" check box is checked,
the range of temperature to analyze is restricted within "From" ~ "To".
It is efficient when more than one raw data set is used.

step 2 Introducing The Model

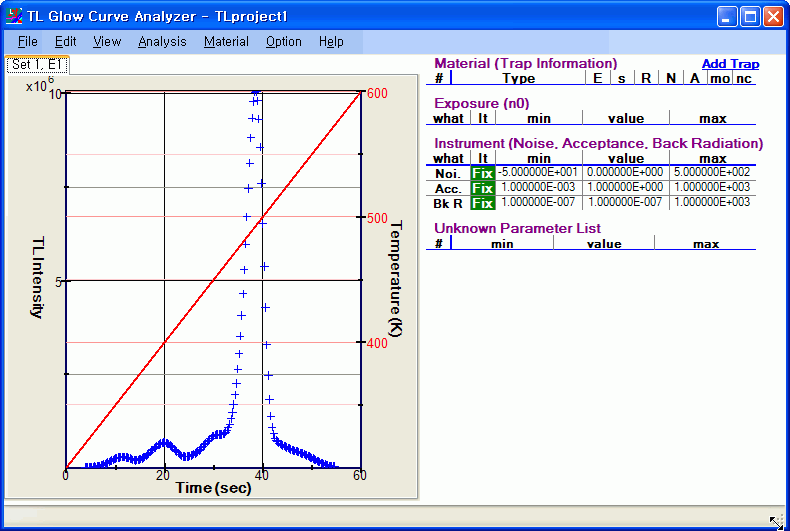

When the glow data have been introduced, main windows appear as follows.

Left Pane : Graph of measured Data (If "List TL Data" is checked in View menu, leftmost pane is sheet of raw data)

Right Pane : The TL model (Material, Exposure, Instrument)
    Material : Traps information
    Exposure : n₀ value of each trap
    Instrument : Noise(Background), Acceptance(magnification factor - fixed in this version), Back Radiation(Blackbody radiation)

step 2-1 Press "Add Trap" in the right-top part of right pane (Introducing one trap)

step 2-2

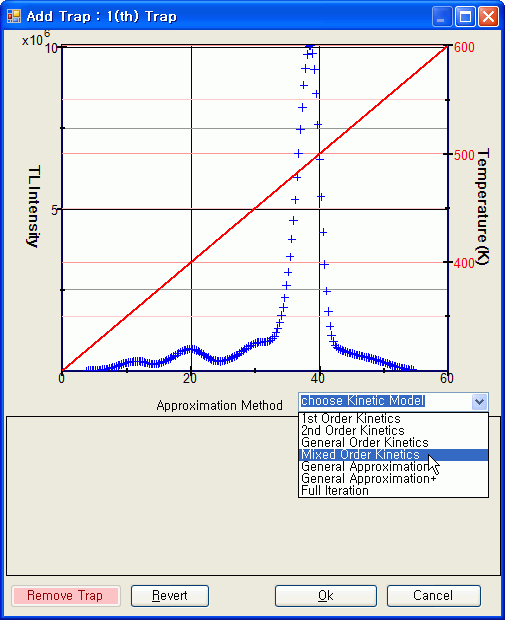

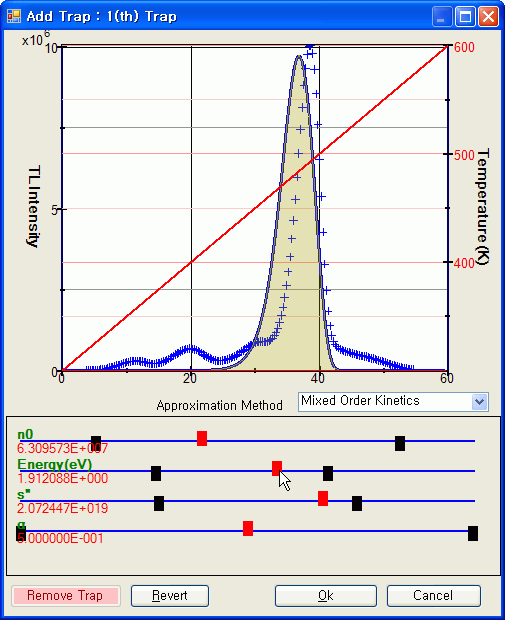

When "Add Trap" dialog appear, choose trap mode (in the above sample dailog, "Mixed Order Kinetics" is selected)

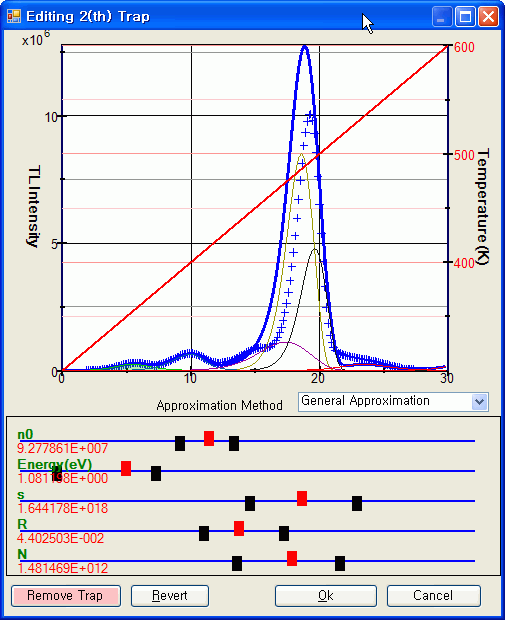

Adjust parameter sliders to fit one peak of raw data which is indicated by cross.
(Peak height is adjusted by n₀ and position is adjusted by E and s, and so on)
